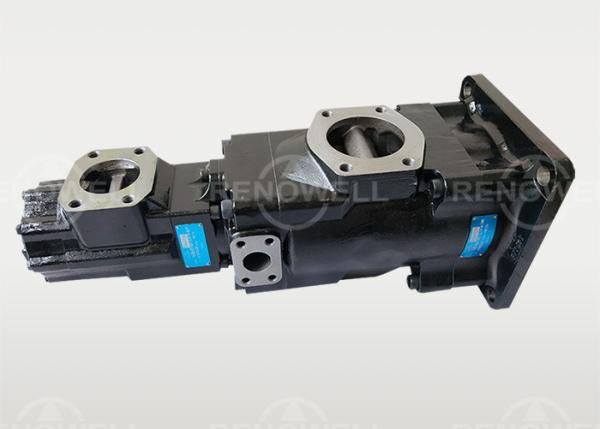

Renowell T6EE Drive Train Vane Pump Hydraulic Pump Replacement

Drive train units are available in a variety of different displacements with multiple shaft, porting, adapter, and coupling options.

Drive Train Vane Pumps are in a huge demand now a days for machines where both vane pumps (fixeddisplacement ) & variable displacement pumps are to be used. This pumps have a special piggy backtype construction where one dose not need two prime movers for two different variety of pumps.

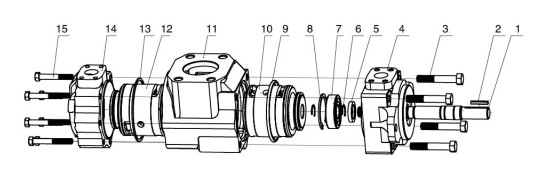

	T6 T7 Double Pump Exploded View
NO.	Part
1	Shaft
2	Straight Key
3	Hexagon head bolt
4	Front cover
5	Shaft Seal
6	Cir clip for shaft
7	Ball Bearing
8	Cir clip for hole
9	Rectangle seal ring
10	Front Cartridge
11	Middle body
12	Rear Cartridge
13	Rectangle seal ring
14	Rear Cover
15	Hexagon head bolt

Technic data

T6CC	-25	-17	-1	R	2	-C	1	10
Series	Flow Code	Flow Code	Shaft type	Rotation	Outlet position	Design No.	Sealing level	Port Dimensions
T7BB T7BBS	B03, B04, B05, B06, B07, B08, B10, B12, B15	B03, B04, B05, B06, B07, B08, B10, B12, B15	See of shaft code	R or L	See pictures	C	1-S1 Nitril rubber	00 or 01 See Installation dimensions
							5-S5 Fluono or Viton rubber
T67CB	B03, B05, B06, B08, B10, B12, B14, B17, B20, B22, B25, B28, B31	B03, B04, B05, B06, B07, B08, B10, B12, B15						No option
T6CC	B03, B05, B06, B08, B10, B12, B14, B17, B20, B22, B25, B28, B31	B03, B05, B06, B08, B10, B12, B14, B17, B20, B22, B25, B28, B31						00, 01, 10,11 See Installation dimensions
T67DB	B14, B17, B20, B22, B24, B28, B31, B35, B38, B42, B45, B50, B61	B03, B04, B05, B06, B07, B08, B10, B12, B15
T6DC	B14, B17, B20, B22, B24, B28, B31, B35, B38, B42, B45, B50, B61	B03, B05, B06, B08, B10, B12, B14, B17, B20, B22, B25, B28, B31
T67EB	B42, B45, B50, B52, B57, B62, B66, B72, B85	B03, B04, B05, B06, B07, B08, B10, B12, B15
T6EC	B42, B45, B50, B52, B57, B62, B66, B72, B85	B03, B05, B06, B08, B10, B12, B14, B17, B20, B22, B25, B28, B31
T6ED	B42, B45, B50, B52, B57, B62, B66, B72, B85	B14, B17, B20, B22, B24, B28, B31, B35, B38, B42, B45, B50, B61

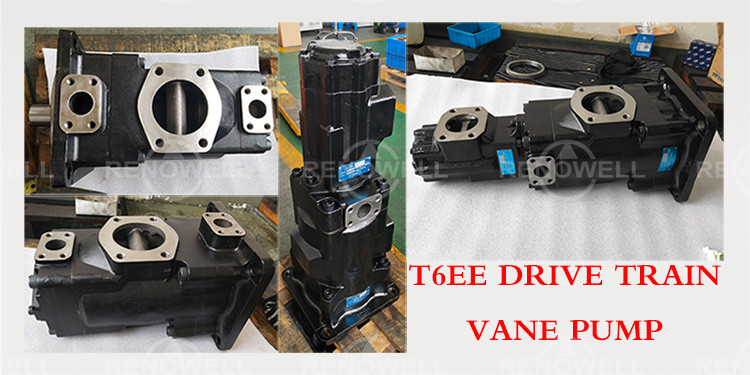

Products Pictures
