Replacement High Pressure Vane Pump SQP21 SQP31 SQP41 For Plastic Injection Machinery

Ask Lasest Price
Brand Name :	RENOWELL
Model Number :	SQP21, SQP31, SQP41
Certification :	CE, ISO9001
Price :	Negotiable
Payment Terms :	L/C, T/T, Western Union
Supply Ability :	5000 UNITS / MONTH
Delivery Time :	2-5 Working days for sample Order

Add to Cart

Product Details
Company Profile

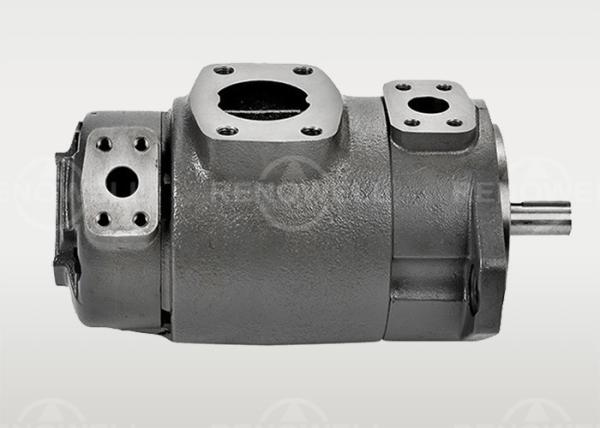

Replacement High Pressure Vane Pump SQP21 SQP31 SQP41 For Plastic Injection Machinery

SQP21, SQP31, SQP41 Replacement Vane Pump Tokimec Hydraulic pump

Characteritics
High Performance Intravane Pumps for plastic injection machinery, Shoe machinery, Tool machinery, Die casting machinery and Metallurge equipment.
1.Intravane pumps with hydraulic balancing structure provide more stable performance and longer life since less pressure from vane on stator.
2.Twelve vane system provide low amplitude flow pulsation resulting in low system noise characteristics.
3.Verious displacement and shafts with 4 different outlet opposite position make operation more flexible.
4.The cartridge is independent of the drive shaft, allowing for easy servicing without remore the pump from its mounting.
Hydraulic vane pump are widely used in Heavy equipments, Mining machinery,Rubber & Plastic machinery, Shoes machinery, Die Casting Machinery, Metallurgical machinery, Metal Cutting Machinery and other types of hydraulic systems.

Series	Code	Geo metric displacement	Min speed	Using antiwar hydraulic oil or phosphate ester fluid		Using water-in-oil emulsions		Using water glycol fluid		Weight kg

		cc/r	(rpm)
		(in2 /r)		Max. speed	Operating pressure	Max. speed	Operating pressure	Max. speed	Operating pressure	Flange mounting	Foot mounting

				(rpm)	(Mpa)	(rpm)	(Mpa)	(rpm)	(Mpa)
	2	7.5(0.46)	600	1800	14				14	16	19

	3	10.2(0.62)					14	1500
	4	12.8(0.78)			21	1200			16
	5	18(1.10)
	6	19.2(1.17)
	7	22.9(1.40)
	8	27(1.67)
SQP1	9	30(1.85)
	10	31(1.89)
	11	36(2.22)
	12	40(2.49)			16				14
	14	45(2.78)			14
	10	33(2.01)	600	1800		1200	14	1500		25	34.5
	12	39(2.47)
	14	45(2.78)			17.2				16
	15	46.7(2.85)
SQP2	17	55(3.39)
	19	59.2(3.61)
	21	67(4.13)
	25	78.6(4.79)			14				14
	17	53.3(3.25)	600	1800		1200	14	1500		35	44.5

	21	66.7(4.07)			17.2				16
	25	81(4.94)
	30	97(5.91)
SQP3	32	100(6.10)
	35	112(6.83)
	38	121(7.37)
	42	134(8.17)			14				14
	30	96(5.86)	600	1800		1200	14	1500		59.5	84.5

	35	109(6.65)							16
	38	128(7.81)
	42	138(8.41)			17.2
	45	147(8.95)
SQP4	50	162(9.85)
	60	193(11.75)
	67	210(12.81)			16
	75	236(14.4)			14				14
